Applications - Knuckle boom lift
- Painting, maintenance, lighting work
- Shopping centres & stadiums
- Signwriting
- Cleaning
- Tree lopping
- Factory, warehouse maintenance
- General overhead work

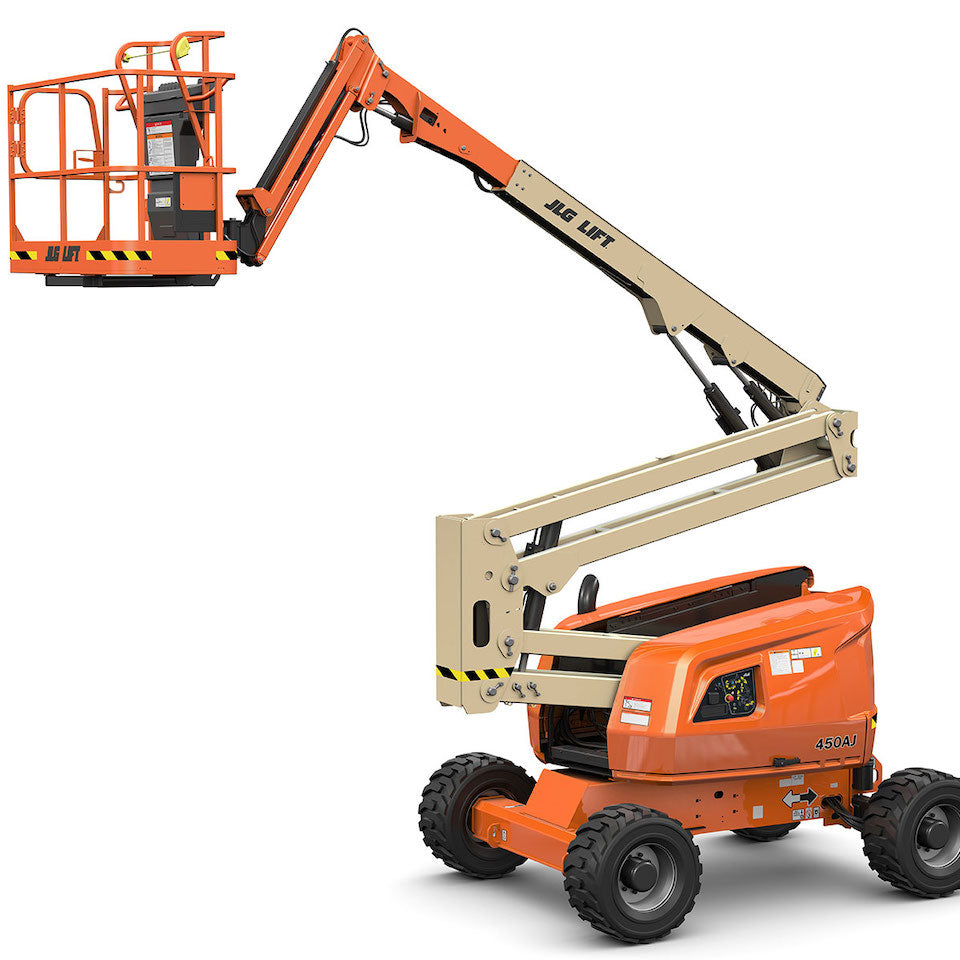

Product Information - JLG 450AJ knuckle boom
A versatile 4x4, boom lift elevated work platform with exceptional outreach. Swing and drive controls from the basket. Hire package includes two harnesses, which must be used as required by law.
- 5 ft (1.5 m) jib
- Self-levelling platform
- Hydraulic platform rotation
- Proportional joystick controls
- Drive enable
- AC power cord to platform
- Horn
- Hour meter
- Tilt alarm
- Descent alarm
- 355° non-continuous turntable rotation
- Positive traction drive
- Two speed wheel motors
- Telematics ready connector
Mandatory Safety Equipment
Please note, make and model of machine supplied may be different to the specifications below. If you require exact figures, please call our office.
Download and print a pdf copy of the JLG 450AJ specifications.

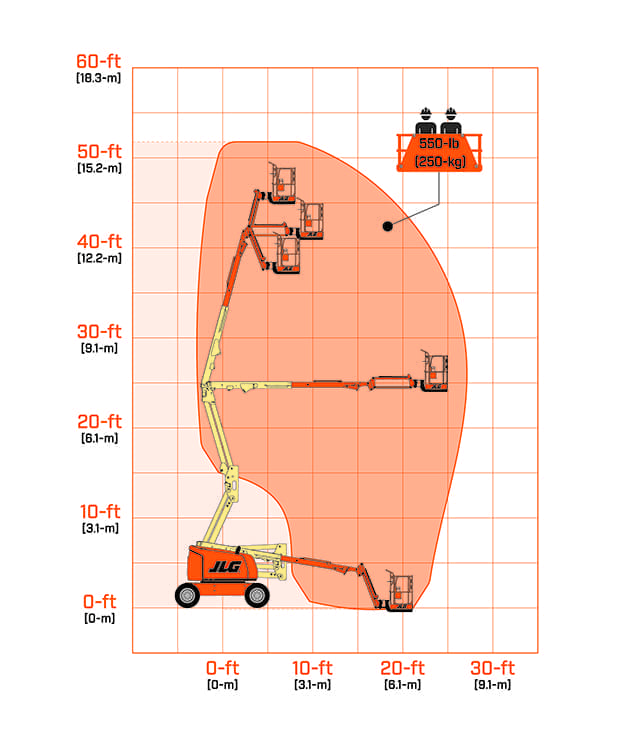

| Specification | Value |
| Platform height | 15.92m (52ft) |
| Working height | 13.9m (45.5ft) |
| Up-and-over height | 7.1m (23.5ft) |
| Below ground reach | 4.8m (16ft) |
| Basket Size | 0.76 L x 1.83W |
| Size (stowed) | 6.65m L x 2.35m W x 2.3m H |
| Horizontal outreach | 7.5m |
| Safe working load | 227kg |
| Power | Diesel |
| Machine weight | 6,500kg |
Please read our General Safety Information Guide before operating this equipment.
Please read our full Hire Contract Conditions here before hiring from Mega Hire.
In addition, please note the following specific conditions:
- a High Risk Work (HRW) license is required to operate this machine
- Employers hiring for their employees have a 'Duty of Care' responsibility under the Act
- Mega Hire will provide instruction on operating this equipment, however it is the customer's responsibility to operate this machine safely
- Operators Manual to be read prior to operating this machine (supplied with the equipment)
- This equipment can only be used on flat solid ground according to manufacturer's guidelines
- The Logbook is required to be completed by the customer when operating this machine
- All persons using this unit must wear an approved safety harness
CAUTION: Do not approach within 3 metres of overhead low voltage power lines or other electrical hazards
NOTE: This unit has outriggers for use on uneven surfaces
Multiple orders can usually be combined into one delivery (depending on size and number of equipment).
Mega Hire deliver to the greater Brisbane area (click on the map below for an ineractive google map). We typically deliver in the morning of each day (excluding Sundays). We will contact you to inform you of a time window for delivery.
Delivery and pickup sites must have a safe area to unload, demonstrate the equipment and complete the paperwork.
